Lifting Electro Magnet

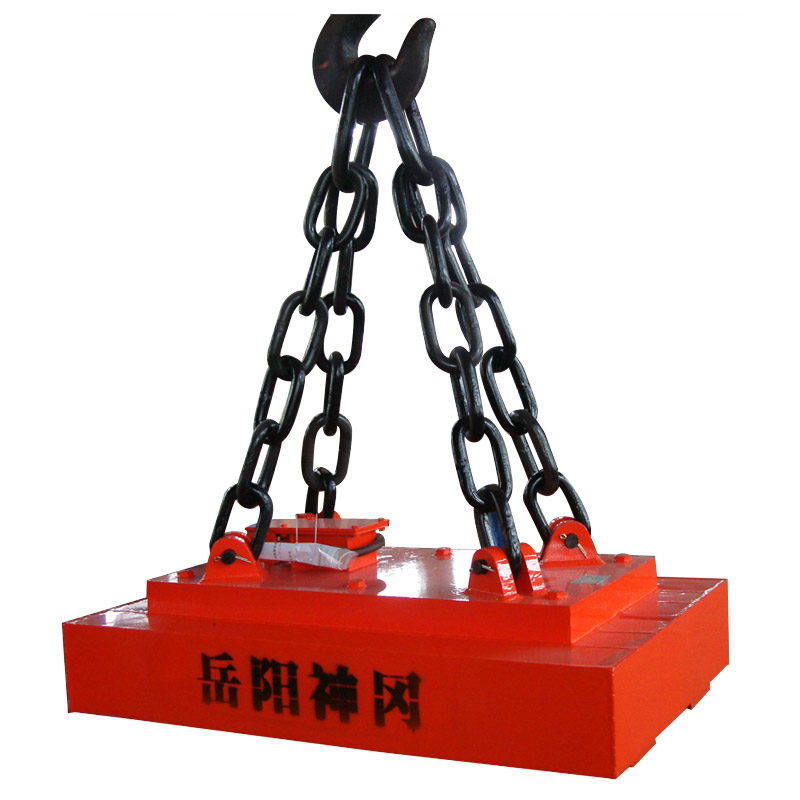

Crane Steel Plate Lifting Magnets for Handling Steel Plate is specially designed for lifting and transporting medium-thick steel plates.
steel plate lifting magnets
- Product Details
- Features
- Series Selection
- Application Video
- Inquiry for Details
--Strong deep magnetic field;
--Easy to operate;
--Number of steel plates can be lifted and controlled by the control panel;
--Several magnets shall be used together according to the length of plate.

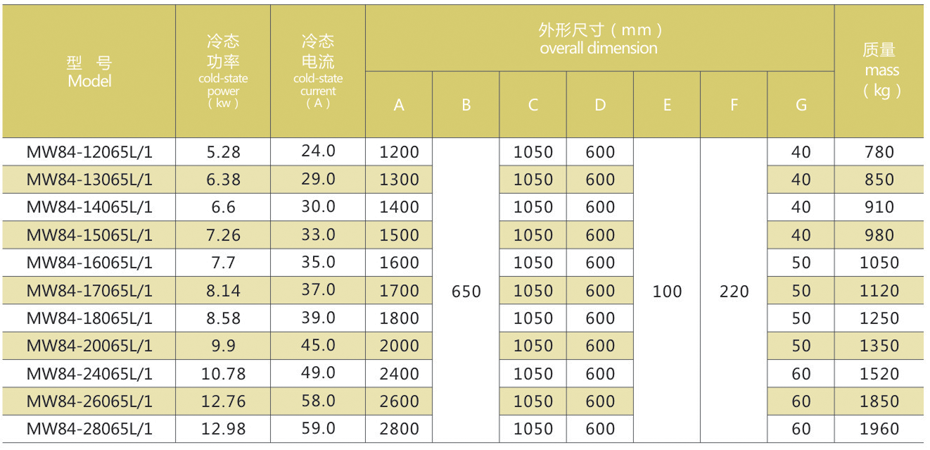

Series MW84-65
Main technical data（rated voltage DC-220V, duty cycle TD-60%）

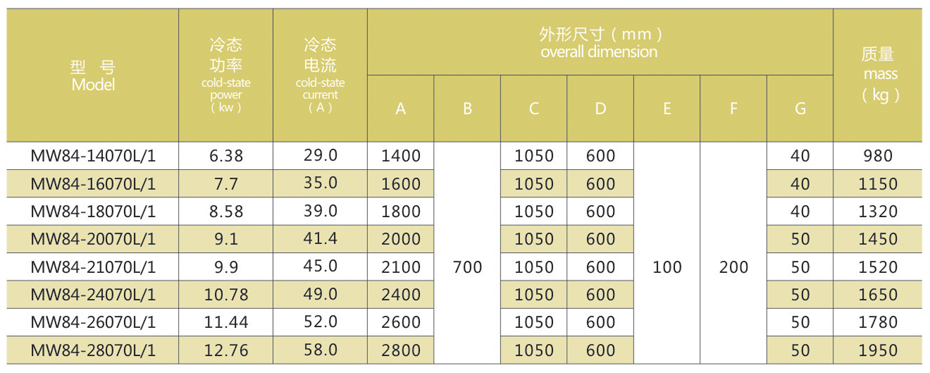

Series MW84-70
Main technical data（rated voltage DC-220V, duty cycle TD-60%）

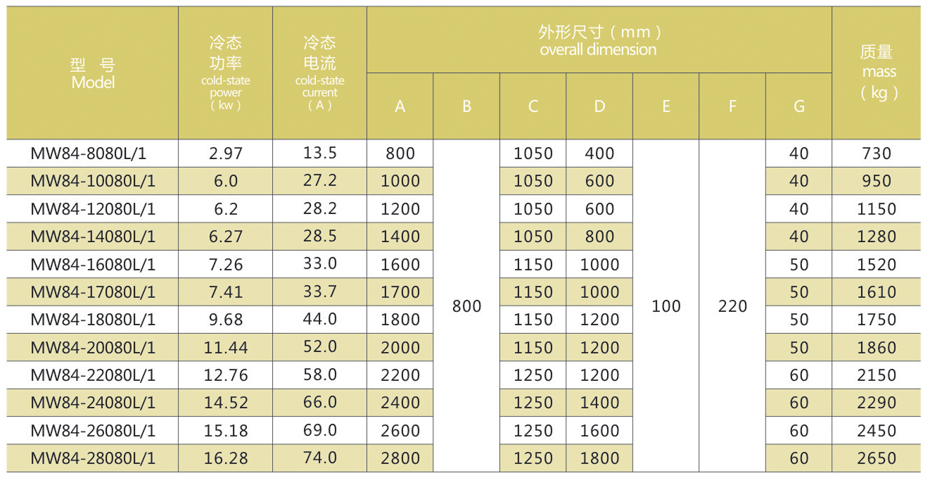

Series MW84-80
Main technical data（rated voltage DC-220V, duty cycle TD-60%）
Specially designed for lifting and transporting steel plate of medium-thickness.

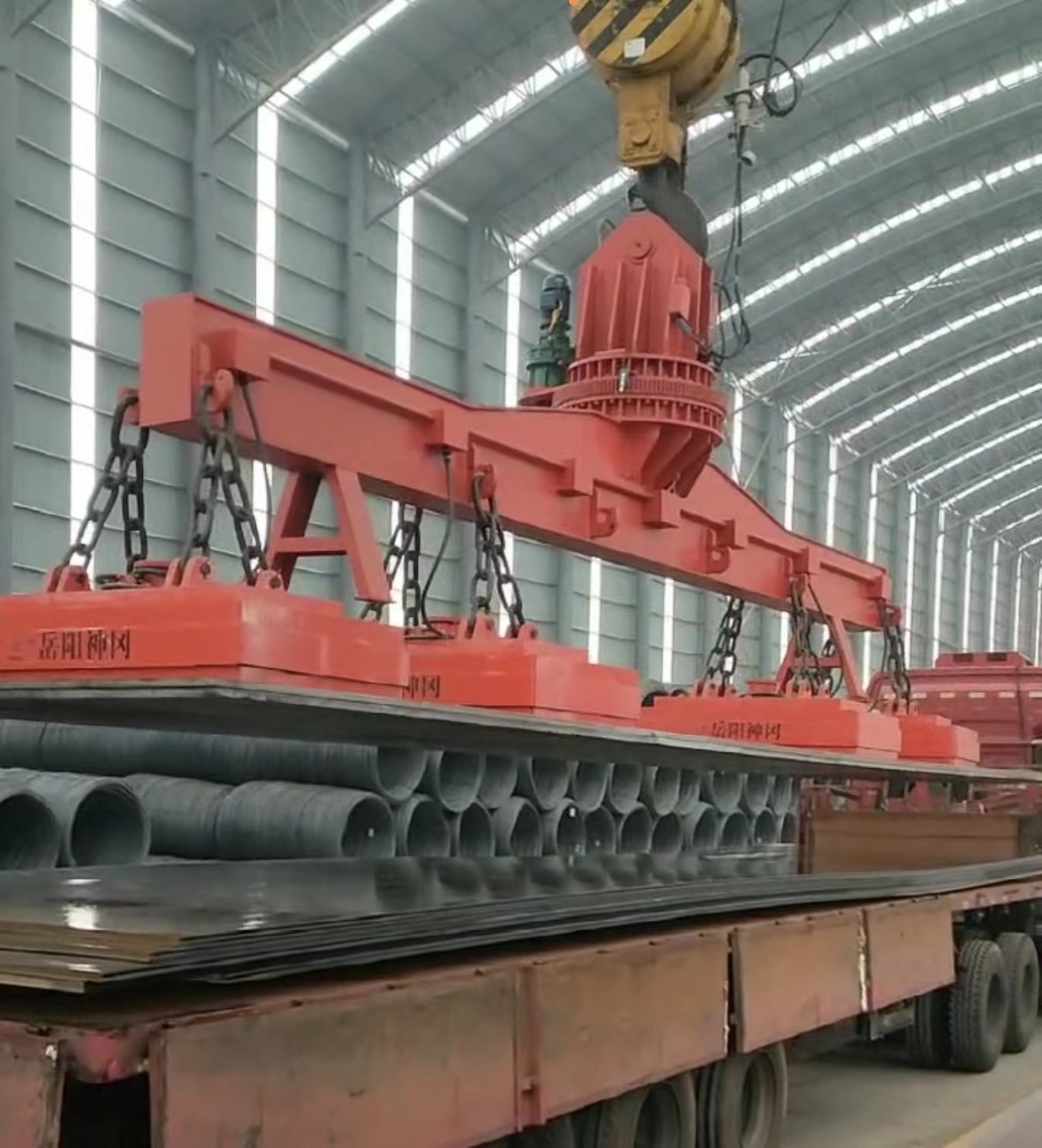

Considering possible bending and deforming may affect safe transportation when lifting long steel plate, please use the combination of several electromagnet.
As to medium-thickness steel plate(6mm~32mm), the space length of electromagnets is 3~4m, the space length of extension parts of both ends is half of the space length.
