MW12 Bundled Steel Rebar Lifting Magnets

--Strong deep magnetic field;

--Easy to operate;

--Number of steel bundled rebar and section can be lifted and controlled by the control panel;

--Several magnets shall be used together according to the length of plate.

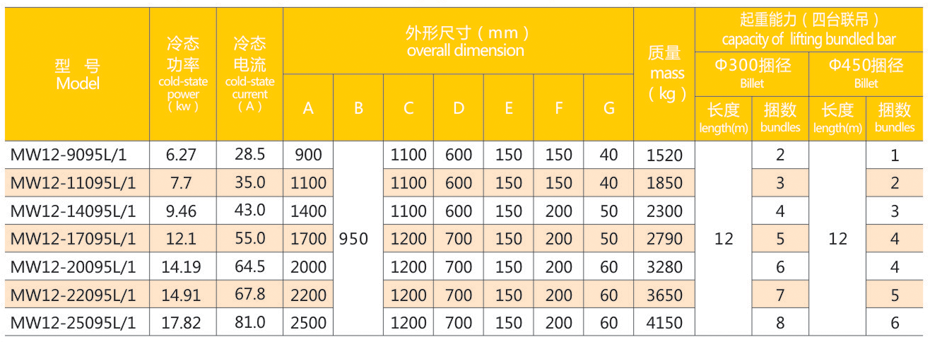

Series MW12-95 Normal Temperature Type

Main technical data（rated voltage DC-220V, duty cycle TD-60%）

Series MW12-95 High Temperature Type

Main technical data（rated voltage DC-220V, duty cycle TD-60%）

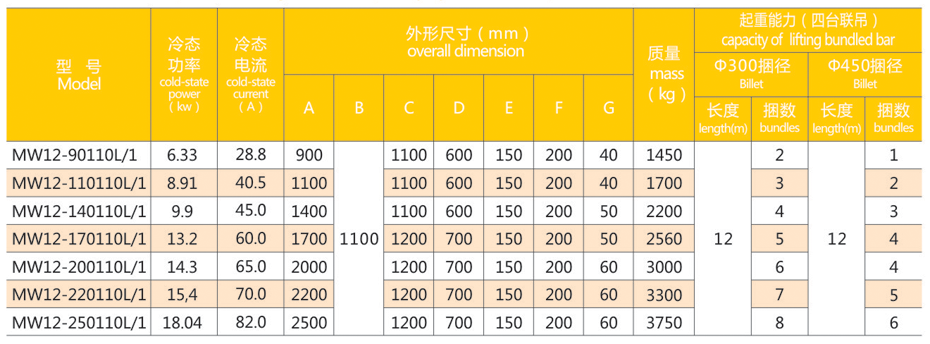

Series MW12-110 Normal Temperature Type

Main technical data（rated voltage DC-220V, duty cycle TD-60%）

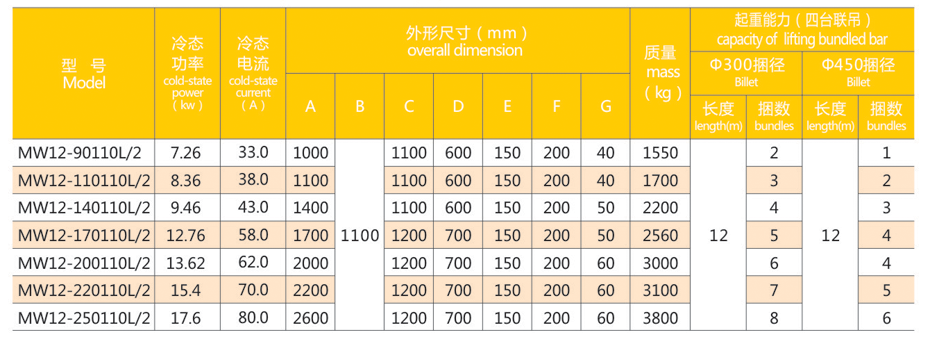

Series MW12-110 High Temperature Type

Main technical data（rated voltage DC-220V, duty cycle TD-60%）

This series are designed as strongly permeable magnetic circuit which can penetrate several layers of air space;

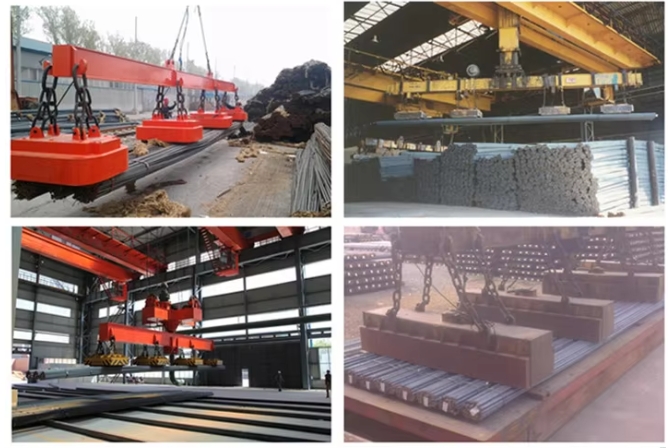

Lift and transport double square billet unbundled simple bundled.

It also can lift and transport large-sized steel ingot and steel ingot. Lift and transport bundled screw-thread steel and small round steel.
