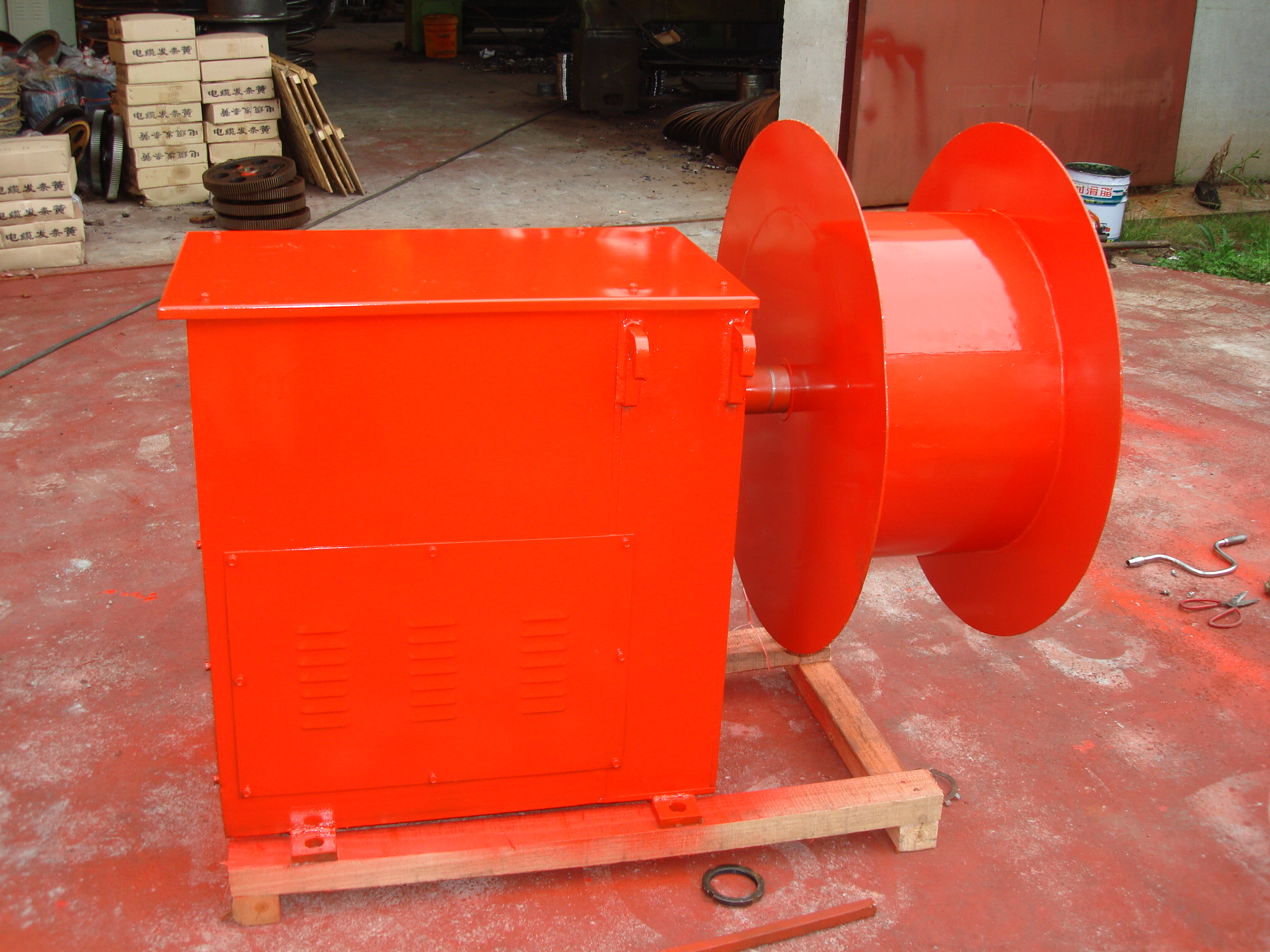

Magnetic Coupling Type Cable Reel JQC Series can be widely used in coal handling system at thermal power plant, large-scale mobile devices such as gantry crane and so on. It is connected by the magnetic coupling machine and cable reel, it can realize and guarantee the take-up and release cable. The product can guarantee smooth and continuous power supply, have reliable synchronization properties, and will not be affected by working condition.
1. Choose the right model according to the cable size, traveling distance, reference to the capacity of cable reel .
2. Choose Sprocket Chain Type or Motorized Type according to the power source output location
Notes:
1. Offer accurate parameters such as model ,cable size ,voltage grade, power source location (one-way or middle) and equipment traveling speed for orders.
2. If choose Sprocket Chain Type, offer the accurate structure and relative parameters( traveling wheel tread diameter) of the traveling equipment ,so as to process the driving accessories. If choose Motorized Type, offer the biggest traveling speed of the equipment, so as to equip the suitable Power Distribution Equipment .

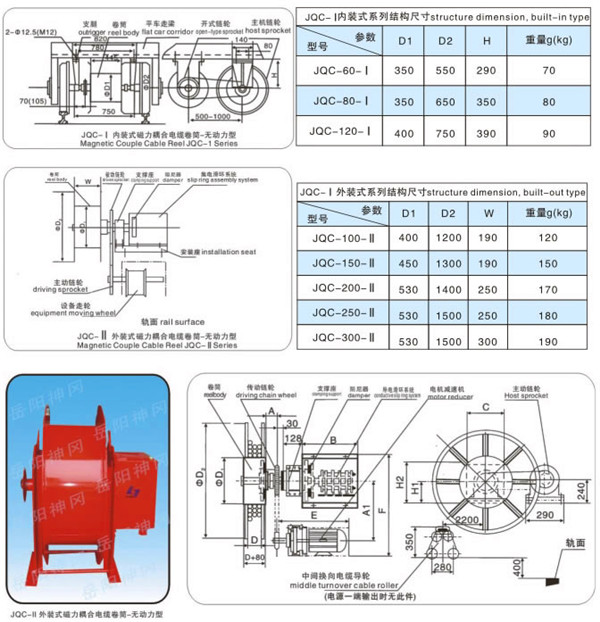

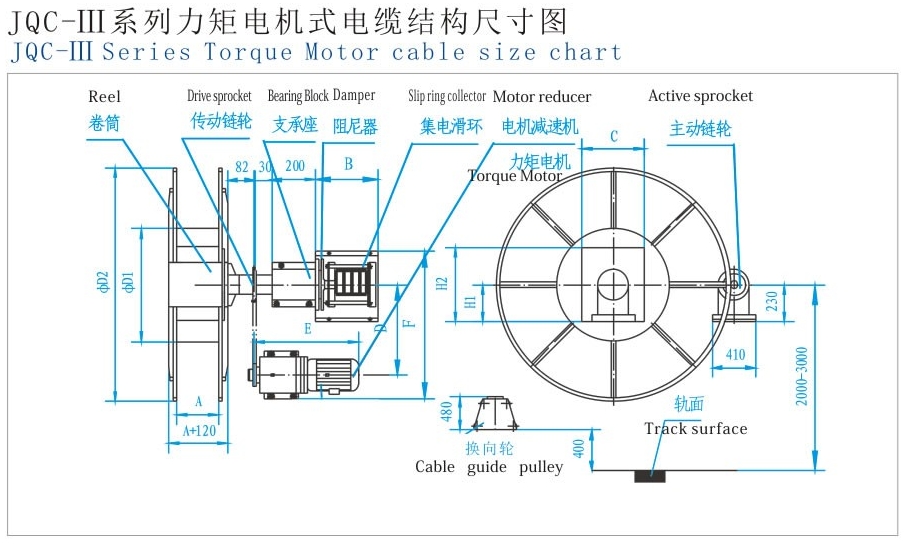

Set cable 4 cores as example in the dimension drawing. Somewhat differs for multiple cores
1. Adopt Magnetic Coupler as the synchronous differential mechanism with good synchronization and steady property, not affected by the working condition changes.
2. Magnetic Coupler adopts separate structure, cable tensility can be modulated at will, easy-operation and cables array in good order.
3. Equipped with slip ring outside, easy-maintenance and installation, higher reliability.
4. Ranges of kind and specification, suitable to cables vary from 2.5mm2 to 50mm2.

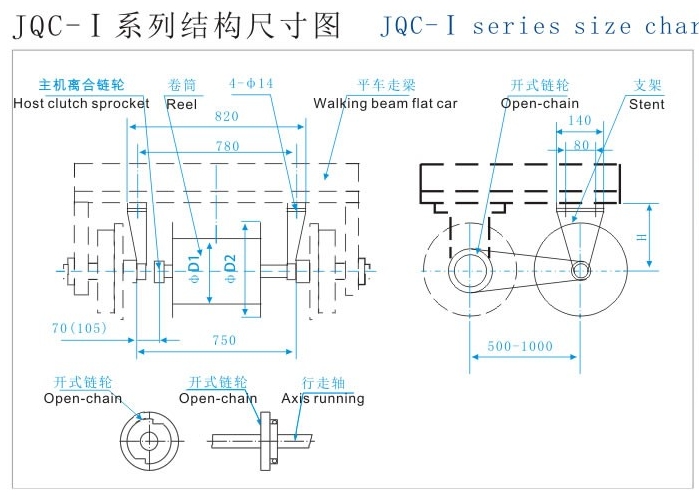

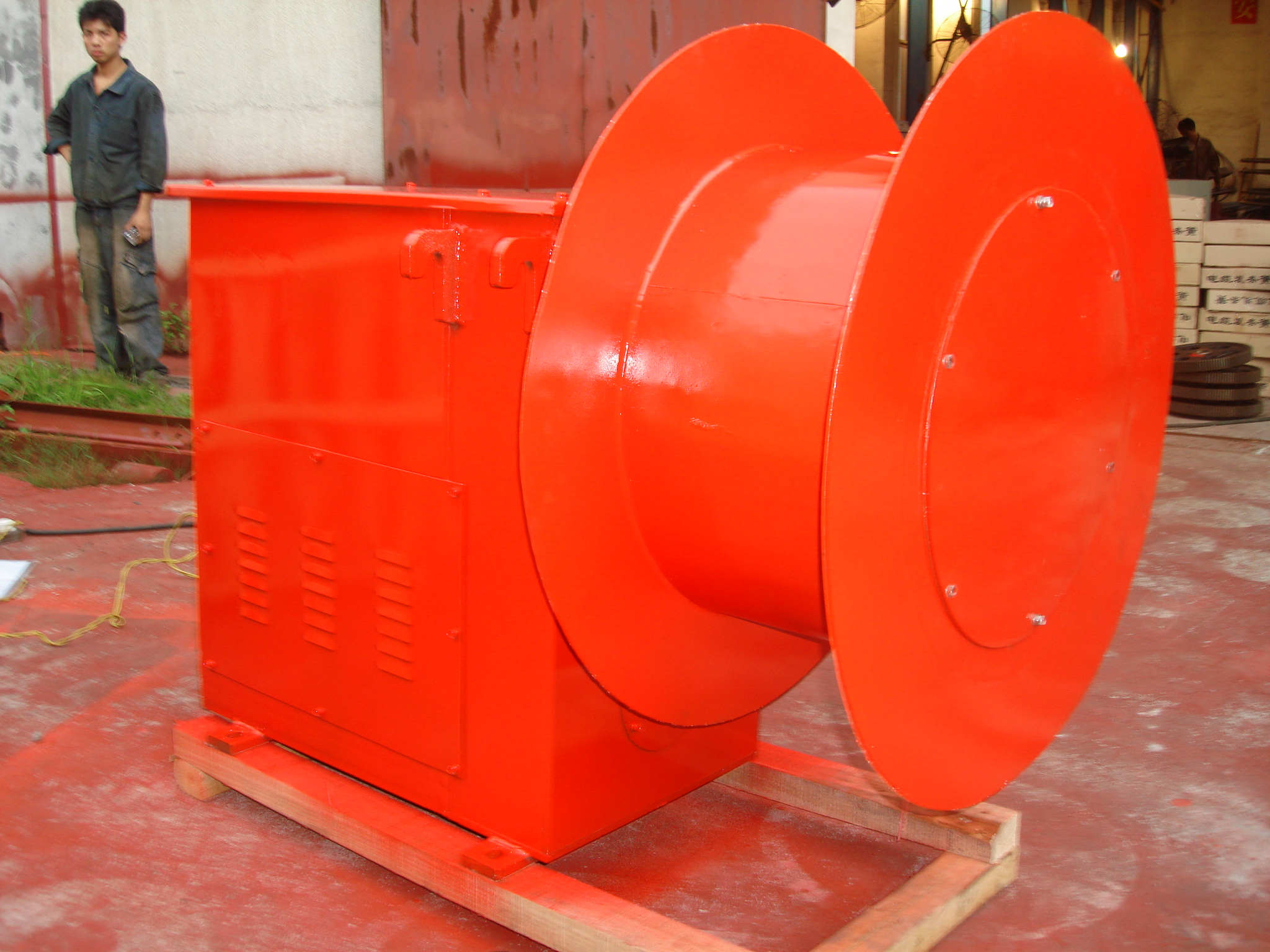

Type JQC-Ⅰ,with slip ring inbuilt ,suitable to tower crane , electric flat car and etc..

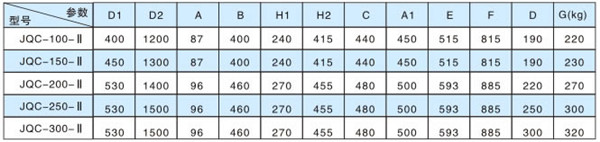

Type JQC-Ⅱ,with slip ring out-built, suitable to door crane ,stacker-re claimer and etc.
